Convert PDF to DWG, DXF or HPGL
pdf2cad v12 is a powerful utility program that transforms 2D vector PDF files, EPS and Adobe Illustrator files into editable CAD drawings. With just a few clicks, you’ll get an accurate drawing, output to DWG, DXF or HPGL format, saving you hours of redraw time.
pdf2cad™ v12 is a powerful utility program that transforms vector PDF files, as well as EPS and Adobe Illustrator files, into editable CAD drawings. With just a few clicks, you’ll get an accurate drawing, output to DWG, DXF or HPGL format, saving you hours of redraw time. Once converted, you can open and edit in TurboCAD®, DesignCAD™ AutoCAD®, MicroStation® and other popular engineering programs.
pdf2cad is ideal for converting CAD drawings, floor-plans, network diagrams and organization charts. As long as the PDF, EPS, or Adobe Illustrator file was computer generated, pdf2cad will extract all CAD entities, objects and text, as well as layers, merge pages and more! Images from scanned files are placed on a non-editable tracing layer.
Use the streamlined interface to convert all pages or specify a page range; one file or multiple files using the batch mode. Even access editing features, apply attributes and much more!
64-bit support – ability to convert larger, more complex files
Improved Layering Support – better, more complete translation of PDF drawings into AutoCAD files, as well as support of Unicode-based layer names
Unicode Character Support – New ability to convert PDF files containing Asian language text and other international language text to corresponding text in CAD file
“I have to say that the software was amazing! It exceeded my expectations. We have from time to time a need to do the conversion and your software was the only one we found to do such a complete job.” George Root, Port Coquitlam, BC.
Convert vector PDF files as well as Adobe Illustrator AI and EPS files into standard DWG, DXF and HPGL file formats
Convert one file or multiple files using the built in batch mode
Convert all pages or specify a page rage
Intelligent object recognition
Concatenates characters to form editable words and lines of text
Add white space to page
Rotate output by any degree
Option to ignore text, images or paths during conversion
Map fonts for high fidelity file match
Scale page to match original dimensions of fills
Specify minimum line width
Separates layers in CAD drawing based on color or other definitions
Dashed/dotted lines as segments
Saves all images as referenced file in DXF format
Command-line version and Windows DLL available for developers
Expanded support for non-standard fonts
Option to remove or outline hatches/fills
Improved reporting on errors and warnings
Streamlined interface for faster and easier conversions
Added scaling options DXF/DWG format
Support of Unicode character set
Enhancements handling unknown character encoding
Layer based on type of entities
Improved nested layering, name verification
New option to ignore small images or convert them to vector
New option to ignore objects with alpha fill setting
Improved font warnings handling
Bug fixes and enhancements DXF/DWG formats
Enhanced PDF interpreter
New Horizontal and Vertical Flip options when converting PDF drawing.

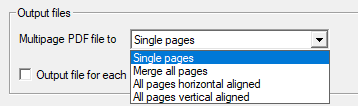

Added support for Multi-page PDF file to one drawing (Merge, Horizontal or Vertical aligned) in DWG output.

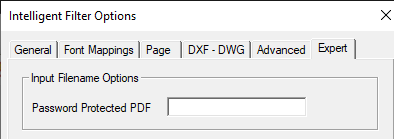

Upgraded support password protected PDF file output to DWG.
Added transparency fill support DXF/DWG format, Scaling factor and support of Circle/Ellipse added to HPGL output.
New automatic font name mapping engine and Upgraded support of condensed text functionality in DXF/DWG.
PDF layers selection option to convert and Convert objects of each PDF layer to a separate file.
More advanced options for handling image objects.
Option to convert connected LINE objects to one POLYOBJECT.
– 64-bit only; 32-bit version retired with v11
– Supports latest operating system releases including Windows 11 , Windows 10.0
- 64-bit Microsoft Windows operating system
- 4GB RAM
- 50 MB hard drive
